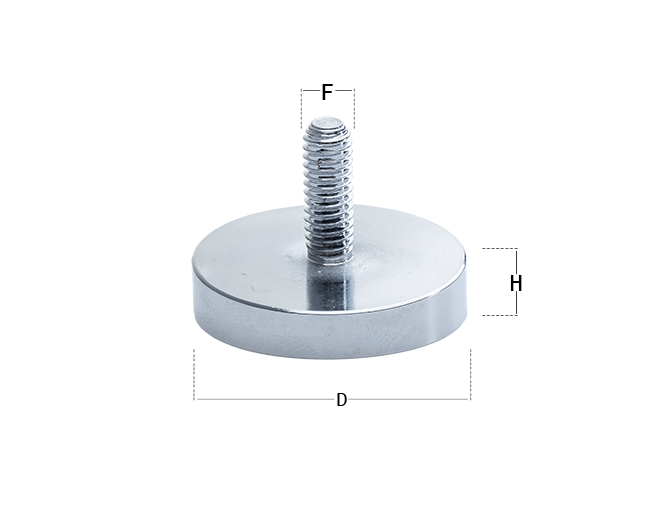

The SM36 series has been realized with the intent to obtain a greater adherence in case of a smooth striker, vertically positioned magnets.
The magnets, encapsulated inside a nickel-plated iron cup, are covered by a rubber adhesive disk, giving a better seal.
The strength of attraction is purely indicative and it could be different depending on the type of application and assembly.



CODE D H F STRENGTH KG
SM36.35NI00.2007 20 7 M4X8 4,0
SM36.35NI00.2060 20 6 M5X15 5,0
SM36.35NI00.2254 22 5 M4X6 4,0
SM36.35NI00.2255 22 5 M5X15 4,0
SM36.35NI00.3014 30 14 M5X15 15,00




Max Temperature 80 °C. Physical Magnet Data Sheet



All the measurements are in millimeters. Other sizes and shapes on request.
