SUPERCALAMITA Magnetic Systems offer the highest attraction,
in small sizes and weights.
The strength of attraction is purely indicative and it could be different depending on the type of application and assembly.

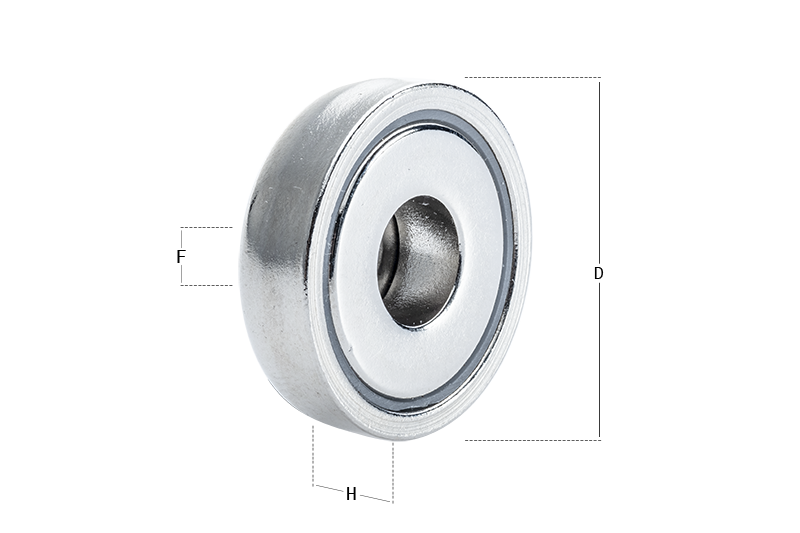

CODE D H THREAD M (F) STRENGTH KG
SM31.35NI00.2508 25 8 5.5/9 19
SM31.35NI00.3208 32 8 5.5/9 45
SM31.35NI00.3608 36 8 6.5/11 49
SM31.35NI00.4811 48 11 8.5/15 63
SM31.35NI00.6015 60 15 8.5/15 95






Max Temperature 80 °C / Also available  SH Type 150 °C. Physical Magnet Data Sheet



All the measurements are in millimeters. Other sizes and shapes on request.
