SUPERCALAMITA Magnetic Systems offer the highest attraction,
in small sizes and weights.
The strength of attraction is purely indicative and it could be different depending on the type of application and assembly.

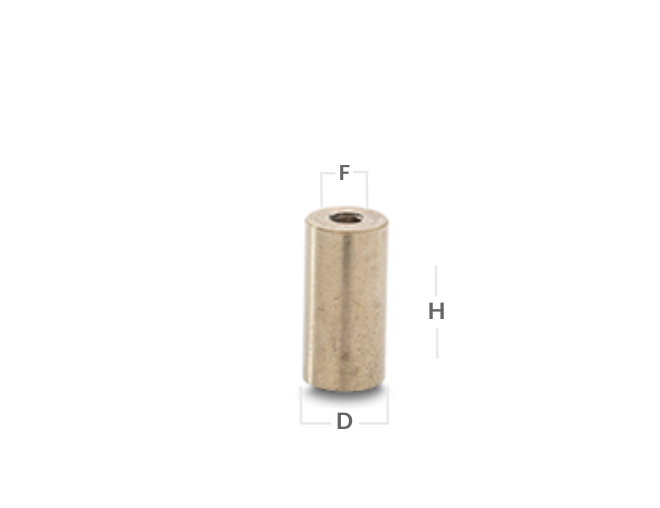

CODE D H THREAD M (F) STRENGTH KG
SM07.35NI00.6203.M3 6 20 M3X9 1
SM07.35NI00.8203.M3 8 20 M3X9 1,5
SM07.35NI00.1020.M4 10 20 M4X7 3
SM07.35NI00.1320.M5 13 20 M5X7.5 5,5
SM07.35NI00.1620.M6 16 20 M6X4 11
SM07.35NI00.2227.M6 22 27 M6 23
SM07.35NI00.2535.M6 25 35 M6X16 35



Max Temperature 80 °C / Also available  SH Type 150 °C. Physical Magnet Data Sheet

All the measurements are in millimeters. Other sizes and shapes on request.
