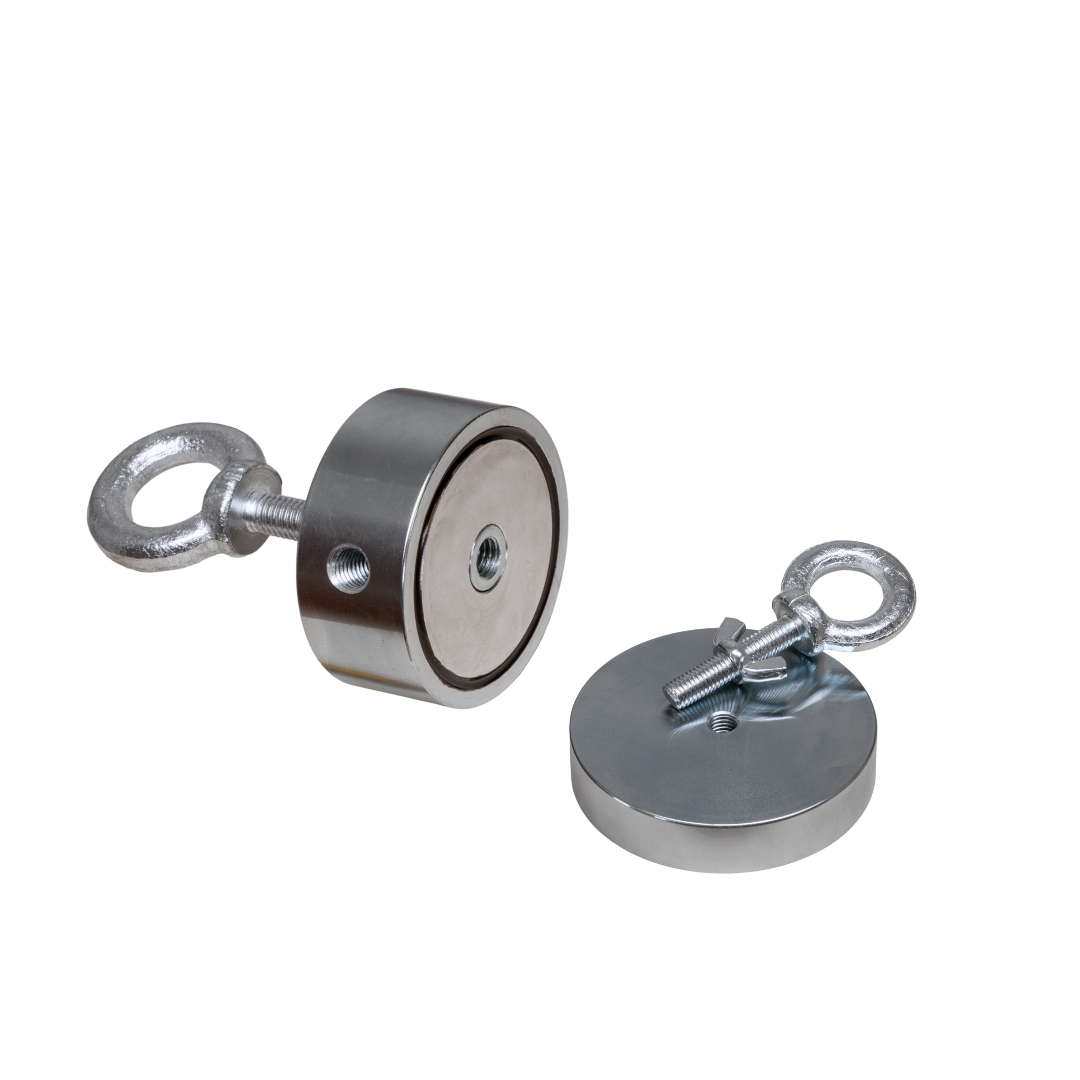

Our fishing magnets are the perfect solution for recovering metal objects of various sizes and weights from the water, thanks to their high adhesive force. The removable threaded rod with eyebolt allows intuitive use with various hooking systems.
Available in one and two threaded holes.

SINGLE HOLE

CODE DIAMETER H HOLE STRENGTH  KG
SM81.35NI00.5812M8 58 12 M8 160
SM81.35NI00.7416M10 74 16 M10 280
SM81.35NI00.9720M10 97 20 M10 480



DUBLE HOLE

CODE DIAMETER H HOLE STRENGTH  KG
SM82.35NI00.48222-M8 48 22 M8 80
SM82.35NI00.67282-M10 67 28 M10 220



Max Temperature 80 °C / Also available SH type 150°C. Physical Magnet Data Sheet



All the measurements are in millimeters. Other sizes and shapes on request.
